Core concepts

Overview​

StackGuardian organizes your infrastructure around a set of resources that cover the full lifecycle from template to deployment. This page explains each resource and how they relate to each other.

Workflow Groups, Workflows, and Stacks​

Workflow Group​

A Workflow Group is a folder-like container for organizing your Stacks and Workflows. Use Workflow Groups to reflect your team structure, environment boundaries, or project hierarchy.

Workflow​

A Workflow is a running instance of a Workflow Template. It executes your IaC code against a target environment. You can deploy Workflows standalone or as part of a Stack. In both cases, you pass parameters at deployment time to configure the Workflow for its specific context.

Stack​

A Stack is an instance of a Stack Template. It groups multiple Workflows that belong to the same infrastructure unit and runs them together.

Workflow Templates and Stack Templates​

Workflow Template​

A Workflow Template is a reusable definition for a single Workflow. It captures your IaC configuration, parameters, and execution settings so you can deploy consistently across environments without repeating setup.

Stack Template​

A Stack Template is a collection of Workflow Templates grouped to represent a complete infrastructure unit — for example, a network layer paired with an application layer.

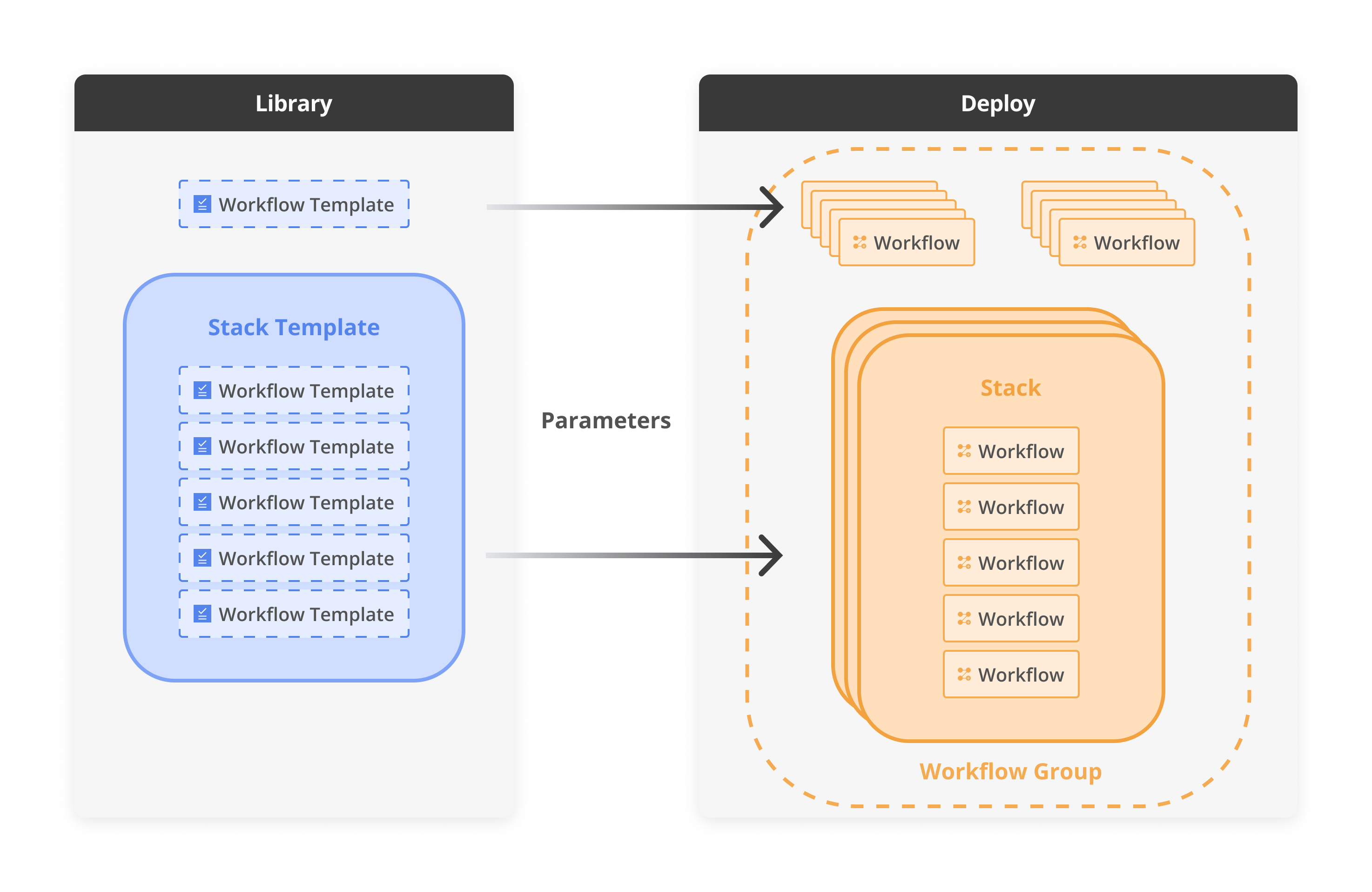

IaC Integration Diagram

IaC integration diagram

Deploying an individual Workflow Template triggers a workflow within the development environment, effectively managing specific tasks or resources. In contrast, deploying a Stack Template, which includes multiple templates, structures the deployment as a Stack. This arrangement creates a network of interconnected workflows, where the output of one workflow becomes the input for one of the following workflows.

Template revisions and sharing status​

Every Template version and every Template's visibility follow their own lifecycle. This section explains both.

Revision lifecycle​

A Template revision moves through three states: Draft, Published, and Deprecated.

Draft​

A Draft is a work-in-progress version of a Template. It is not production-ready, is not available in the Dev Portal, and lets you prepare and iterate on infrastructure definitions before publishing.

With a Draft, you can:

  • Publish it as a new revision when it's ready for deployment.
  • Create a new revision from it to formalize changes and deploy infrastructure.
  • Clone it to a new Template to reuse its configuration separately.
  • Delete it when you no longer need it.

Published​

Published is a live, production-ready version of the Template. It is available in the Dev Portal and can be deployed by users.

With a Published revision, you can:

  • Deprecate it when it's no longer recommended for use.
  • Create a new revision based on it to introduce updates or improvements.
  • Clone it to a new Template to reuse its configuration separately.
  • Run it in the Dev Portal to deploy infrastructure.

Deprecated​

A Deprecated revision is a previously Published version that is no longer recommended or allowed for use. It cannot be deployed, but you can still reference it for new revisions or cloning.

With a Deprecated revision, you can:

  • Create a new revision based on it to introduce updates or improvements.
  • Clone it to a new Template to reuse its configuration separately.
  • Delete it when you no longer need it.

For step-by-step instructions, see Manage Template Revisions.

Template sharing status​

A Template's sharing status controls who can see and deploy it: Private, Shared, or Public.

A Shared Template grants access to specific organizations without making it Public.

With a Shared Template, you can:

  • Let selected organizations view and deploy the Template, without editing it.
  • Keep the Template hidden from users outside the shared scope.
  • Maintain full control over who has access.
  • Stop sharing at any time to revoke access.
